Ultra high refresh Cost-Effective Rental LED Video Wall

BAITRONICS RL-outdoor led video wall

Download full specifications here

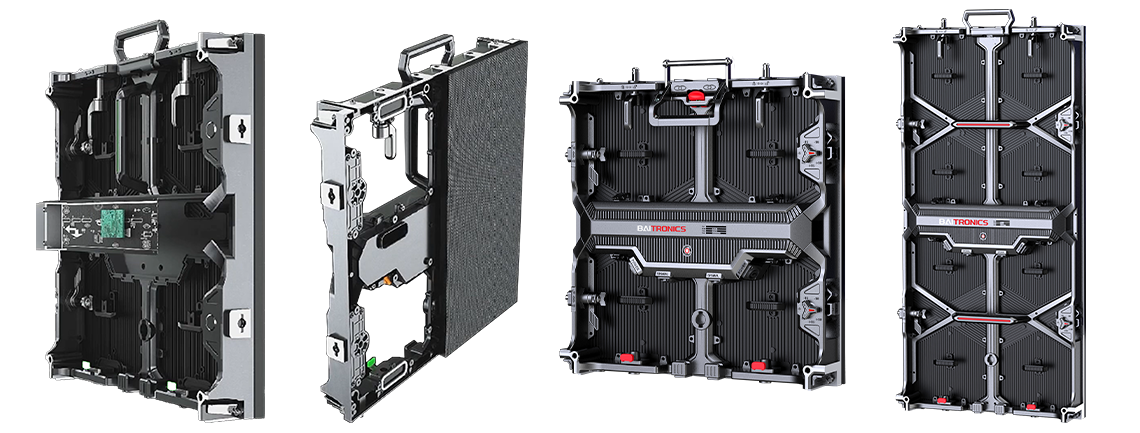

The BAITRONICS LR Series presents a dynamic LED display tailored for stage applications, featuring versatile stage background designs. Compatible with LED cabinets of 500mm * 500mm and 500mm * 1000mm sizes, it enables flexible combinations and stage arrangements. With support for inner and outer arc screen designs, the LR Series offers customers a diverse range of options for captivating stage displays. Renowned for its cost-effectiveness, it stands as a prime choice within the BAITRONICS LED Display lineup.

Product Detail

BAITRONICS RL-outdoor led video wall

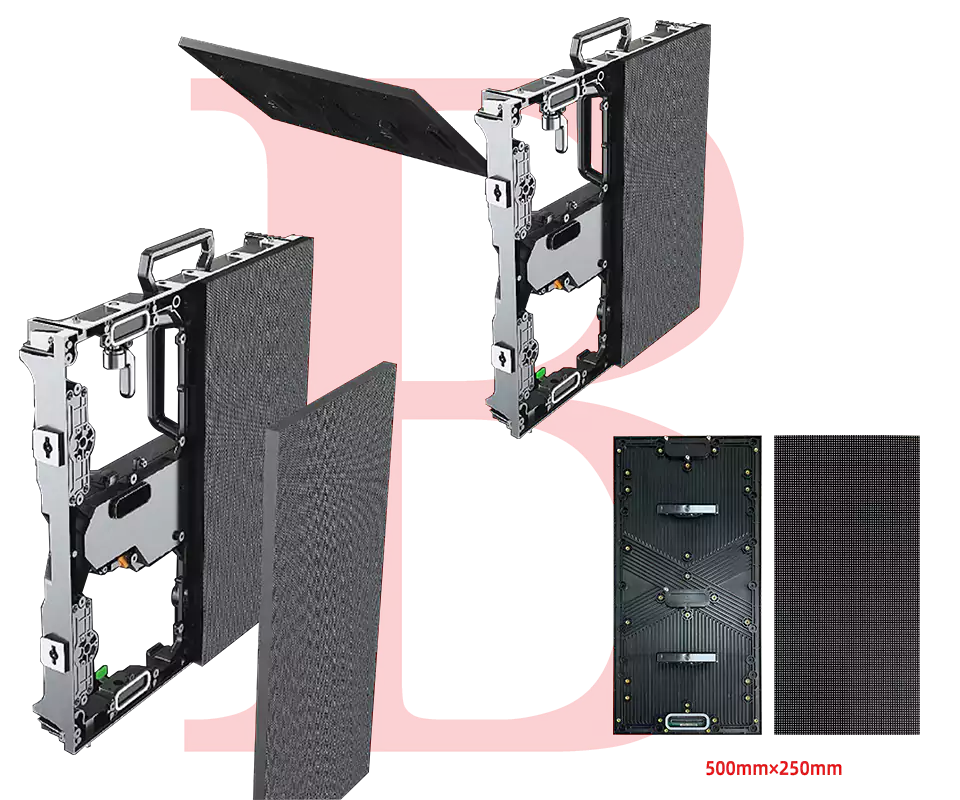

Support Before And After Maintenance

Customers can choose front and rear maintenance of LED modules based on their LED screen usage habits and installation methods. Generally, the Rear maintenance LED modules are fixed with stainless steel screws, which takes longer to disassemble. Currently, Front maintenance takes nickel plated anti rust magnets, which are very convenient for disassembly and replacement.

BAITRONICS RL-outdoor led video wall

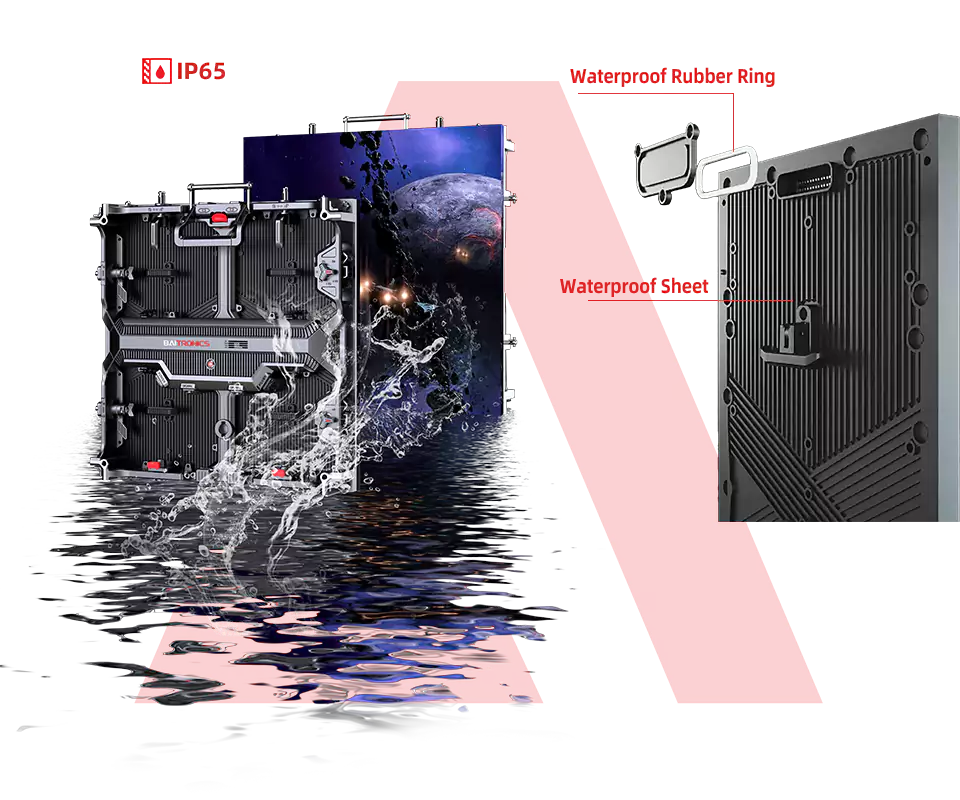

Extreme IP65 Waterproof Or indoor IP45 Waterproof

Due to its excellent waterproof design, the LR series can be used for outdoor fixed installation as an advertising screen,
LED cabinet Front & Rear Side can reach a waterproof level of IP65.

BAITRONICS RL-outdoor led video wall

Modularized Design

BAITRONICS has designed a unique HUB-CARD to achieve wireless connectivity, with power and signal integrated into a control box that can be separated from the LED Cabinet, providing customers with extremely convenient maintenance and installation. Simple and convenient!

BAITRONICS RL-outdoor led video wall

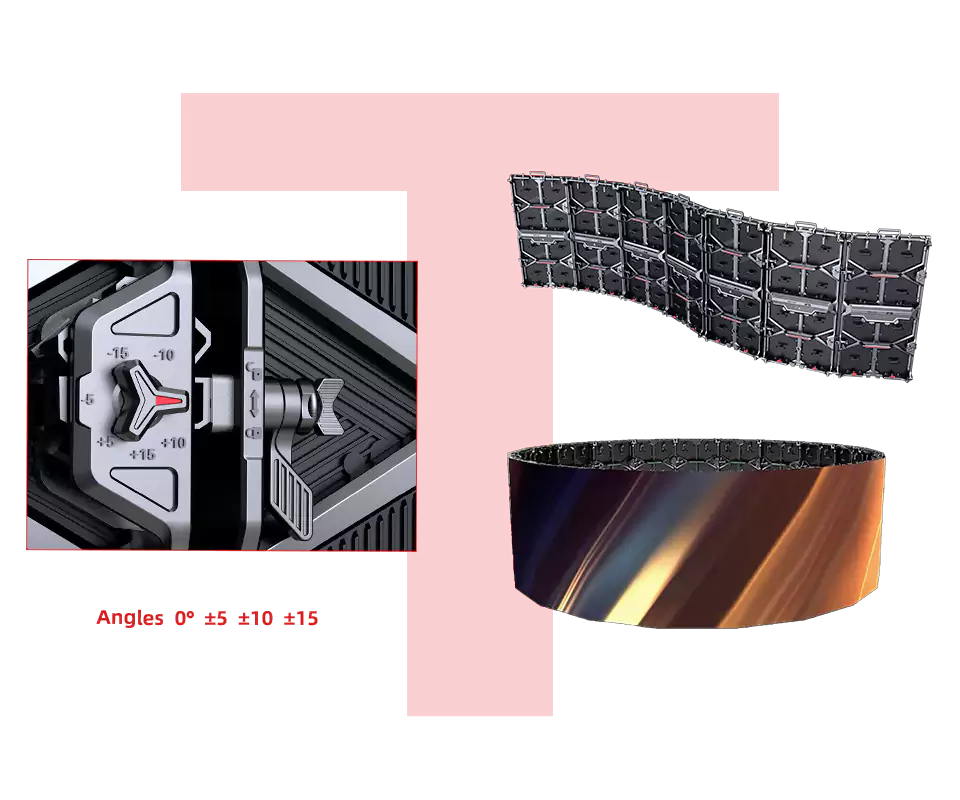

Diversified Installation Methods

The LR series also supports both inner and outer curved designs. According to customer needs, the LR series can offer options of 0 degrees, -/+5 degrees, -/+10 degrees, and -/+15 degrees. In addition, 24pcs LED cabinets can be assembled into a 360 degree circular LED screen.


Yes, the LR Series offers the flexibility to combine and use both 500mm * 500mm and 500mm * 1000mm LED cabinets according to your needs.

Yes, the LR Series supports both front and rear maintenance options, allowing for convenient access and maintenance of the LED modules.

The wireless design of the Hub-card board ensures a more stable connection, enhancing the overall performance and reliability of the LR Series.

Yes, the LED cabinets in the LR Series are designed to be solid, sturdy, and visually appealing, providing a reliable and durable stage display solution.

The LR Series incorporates PWM+DES function, which enables a high refresh rate and grayscale performance. It also helps to minimize heat generation, protecting the electronic components and conserving power.

Yes, the LR Series provides flexibility in combining and building stages. It supports different LED cabinet sizes, allowing customers to freely create their desired stage designs by adjusting the layout and arrangement of the LED cabinets.
